BOTTLING & FILLING / PACKING AND RETRACTIL

AUTOMATIC FILLER/DOSING MACHINE

Reference: EBV-001
Type: DRG-45
Name: AUTOMATIC FILLER/DOSING MACHINE
Year: 2016
Brand: ANCIMO
Width: .

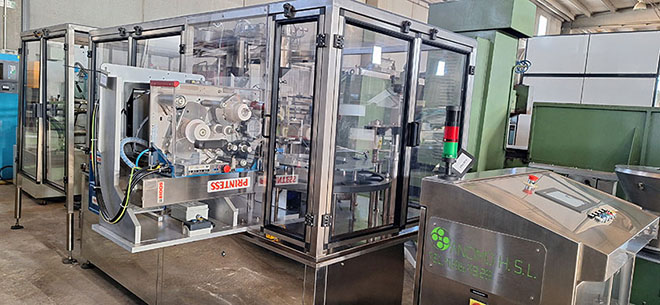

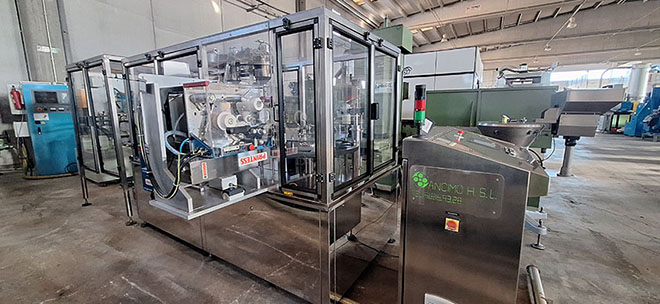

Description: Automatic filling/dosing machine for containers (with godets) with a capacity of 25 to 250 cc.

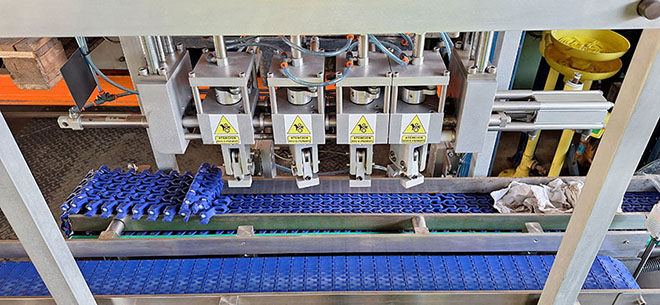

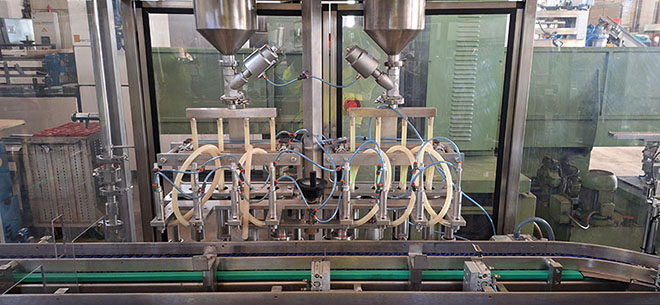

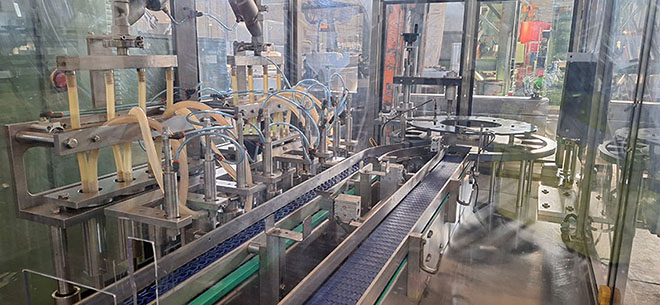

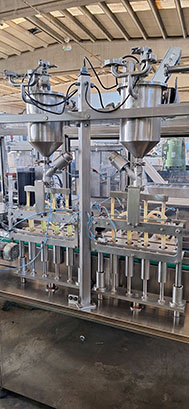

It has eight volumetric pistons adjustable by micrometric spindle.
Max. production capacity 3600 e/hr

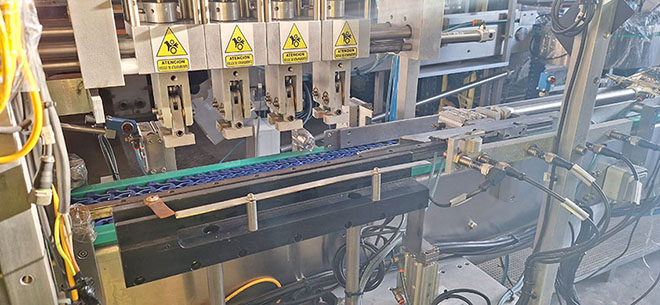

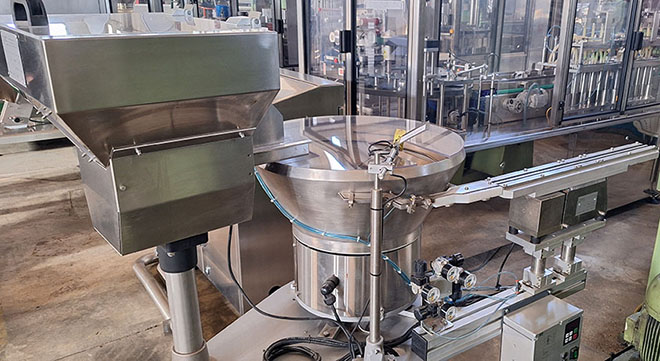

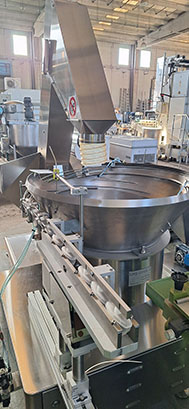

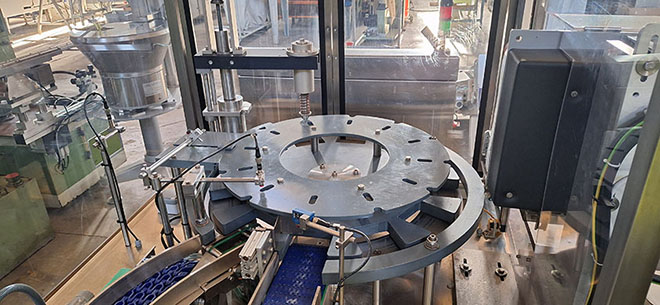

With pressure capping head, GMS type SATRL25 cap feeder hopper, GMS type SABV3CIR510 AH circular vibrator positioner and GMS type SAVR1 linear feeder.

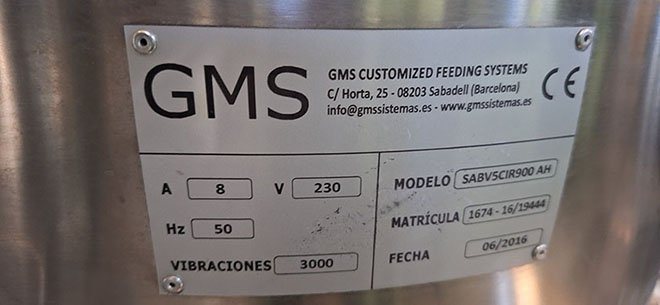

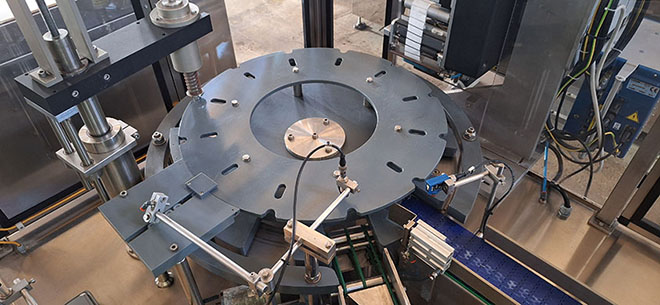

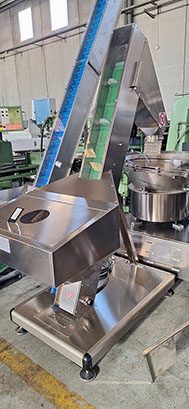

GMS type SAENF150 container elevator, GMS yopo SABV5CIR900 AH circular vibrator positioner and GMS type SAVR2 linear feeder.

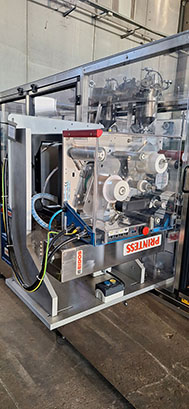

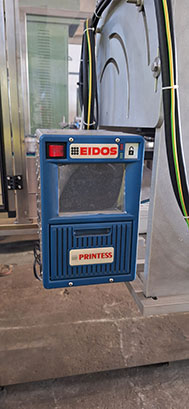

Includes godet loader and unloader, EIDOS PRINTESS type P4E05# labeller/printer.

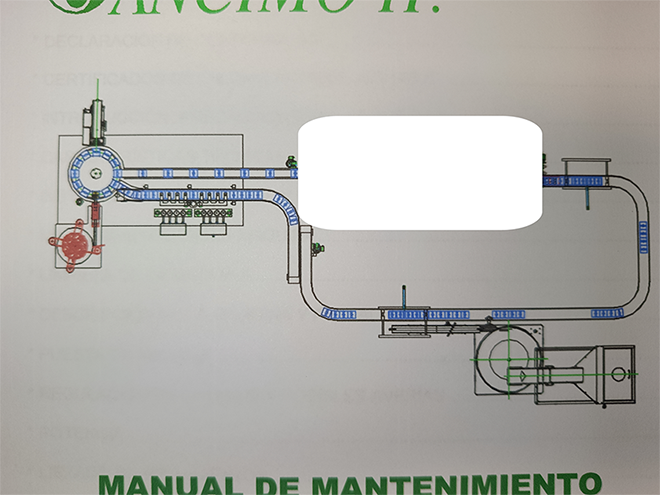

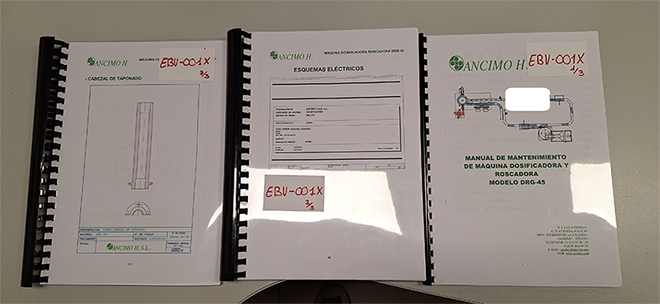

Documentation available (manuals, CE marking, electrical and pneumatic diagrams)
