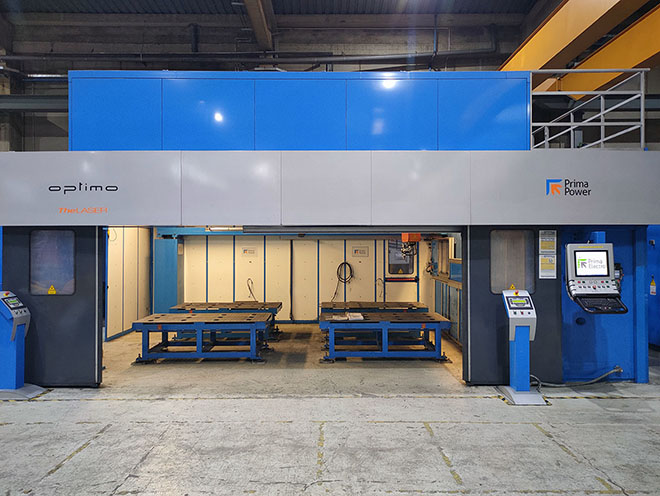

3 D LASER CUTTER

Reference: EFF-001
Type: ÓPTIMO

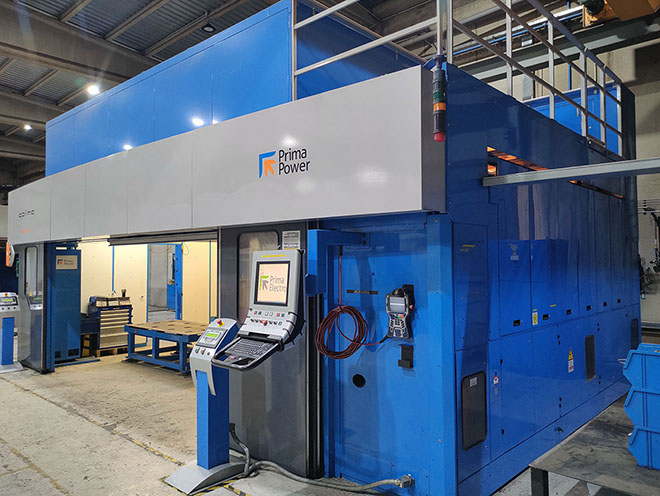

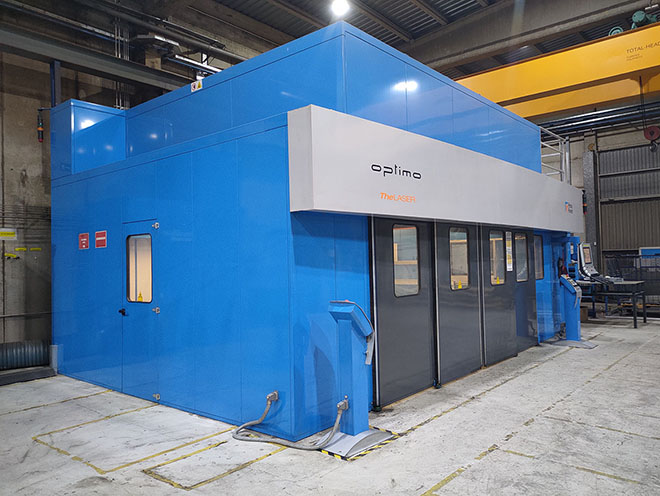

Name: 3 D LASER CUTTER
Year: 2015

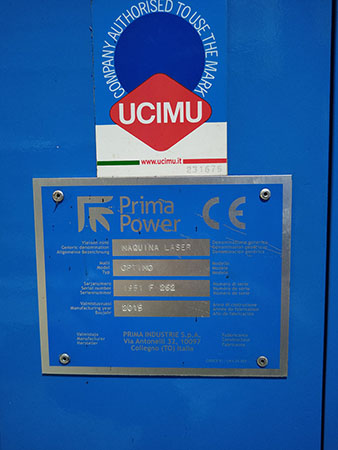

Brand: PRIMA POWER
Width: .
Description: 3D laser cutter

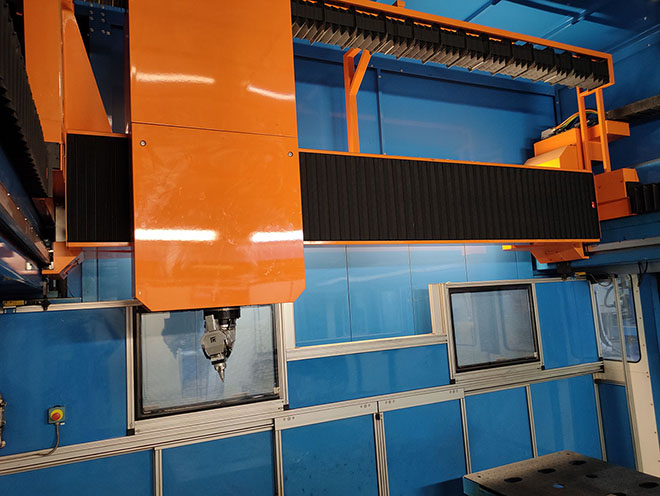

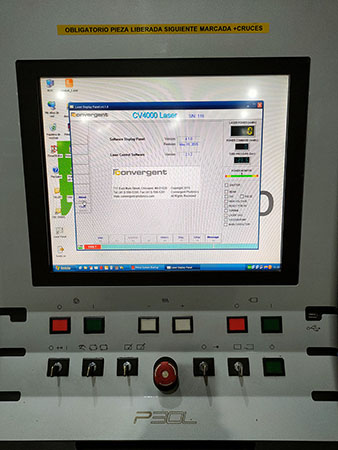

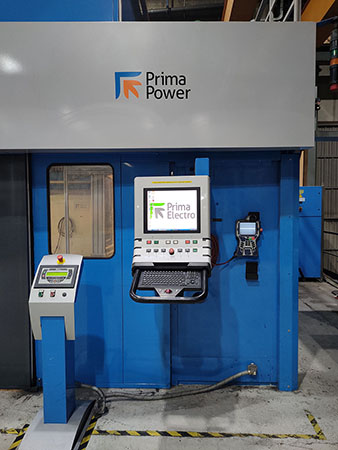

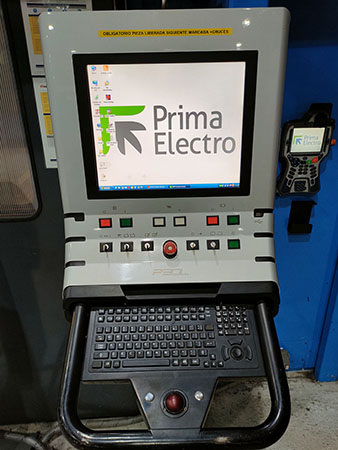

Composed of: OPTIMO machine + CNC control panel P30L S/N 15/40 - 0083-01, CV4000 laser
Working hours: 10740.

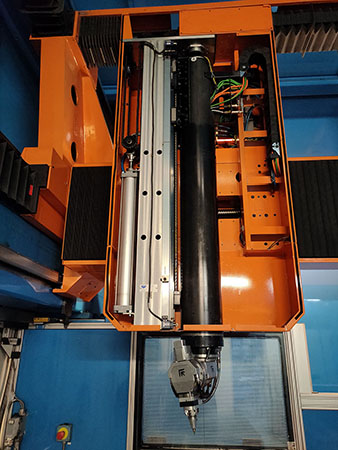

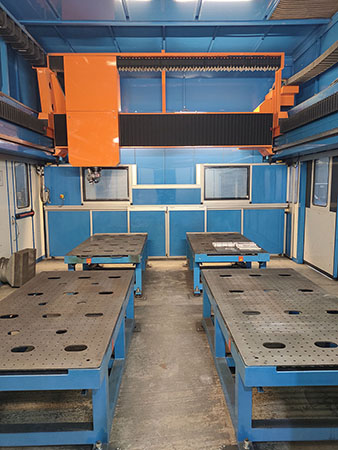

Linear axis strokes: 4500x2500x1020mm (XYZ)

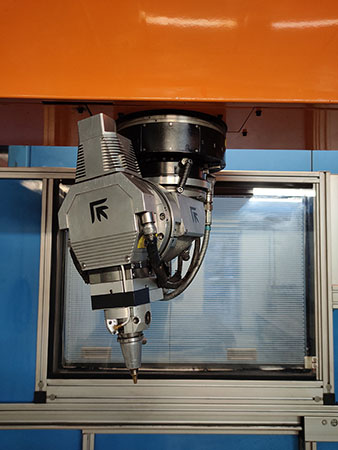

Rotary axis strokes: A axis +- 360º continuous, B axis +- 135º.
Adaptive axis stroke (with part position sensor) C axis +- 10 mm
Maximum speed of the linear axes (XYZ) 50 m/min Max. combined speed of linear axes 85 m/min
Maximum speed of rotary axes A,B 540º/sec
Acceleration of rotary axes A,B 60 rad/sec2

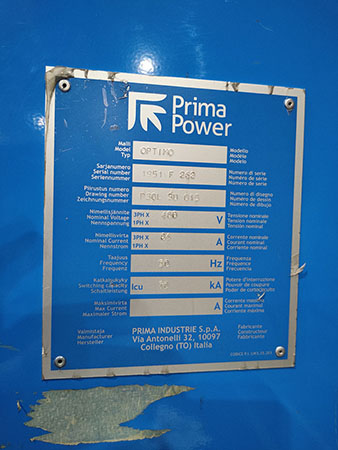

Power supply 400V, three-phase, 50hz

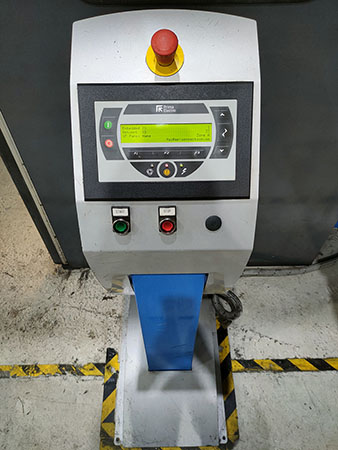

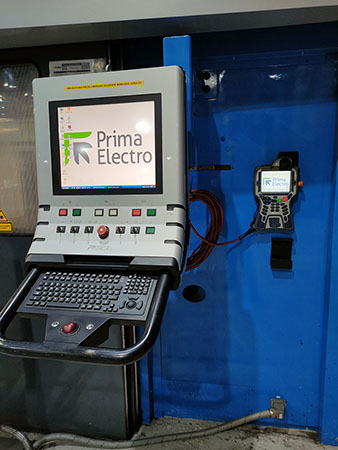

Prima Power wired remote control S/N 14/06 00489

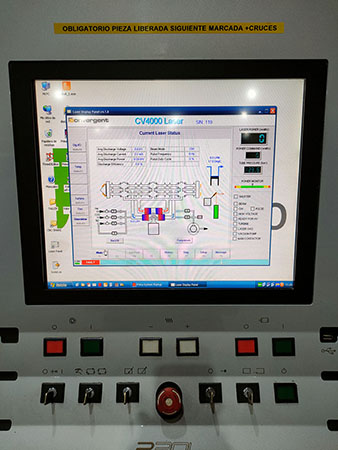

4000W CO2 laser source

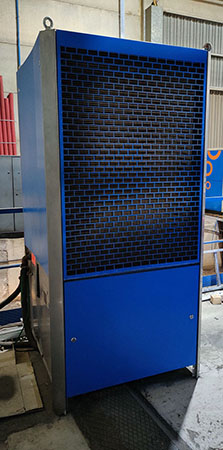

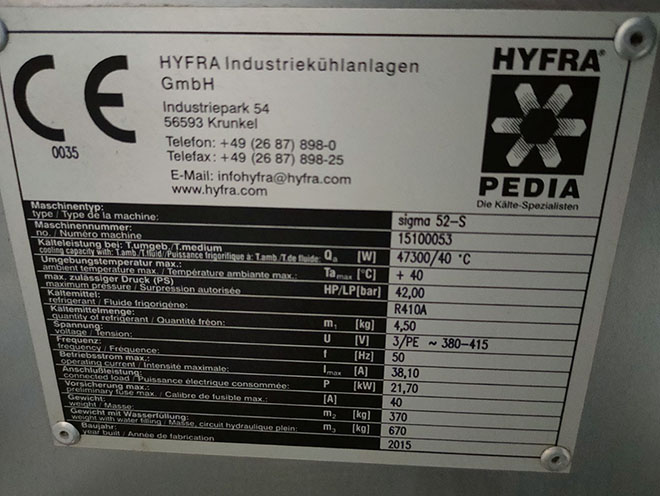

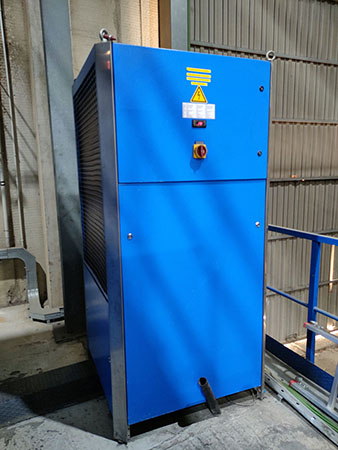

Hyfra Sigma 52-S collar, installed power 53kw/58kva.

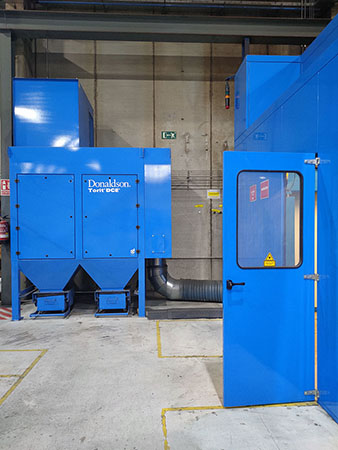

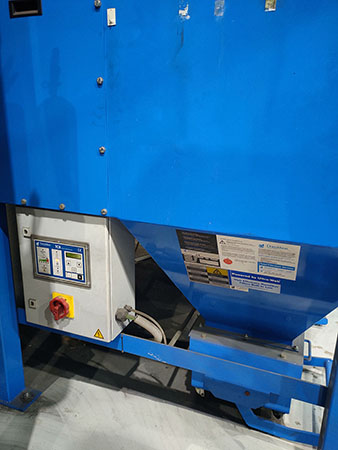

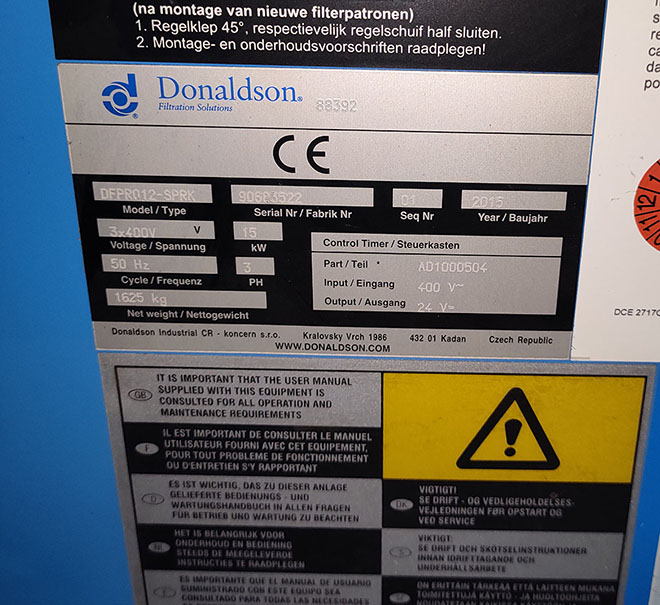

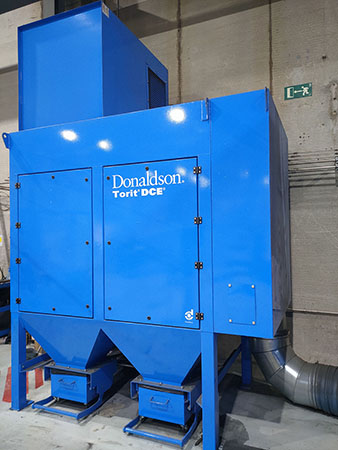

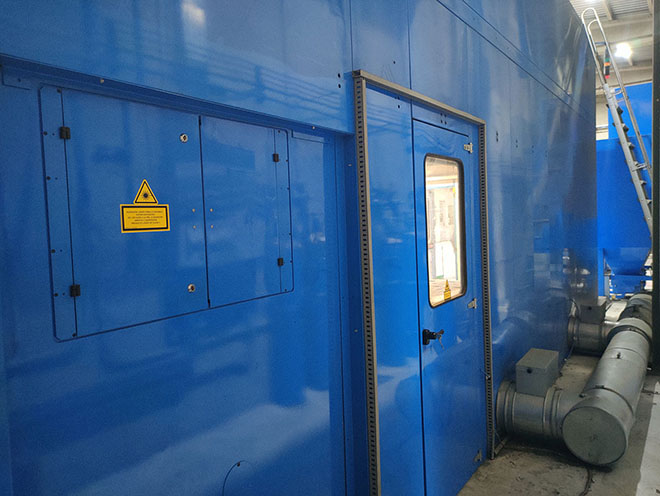

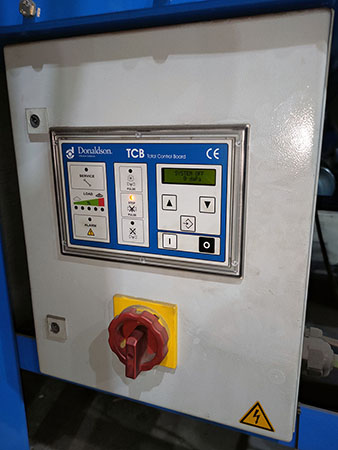

Aspiration and dust treatment system Donaldson DFPRO12, installed power 15kw/18kva.
Donaldson MD2 Micro Dosing System
DOCUMENTATION AVAILABLE
